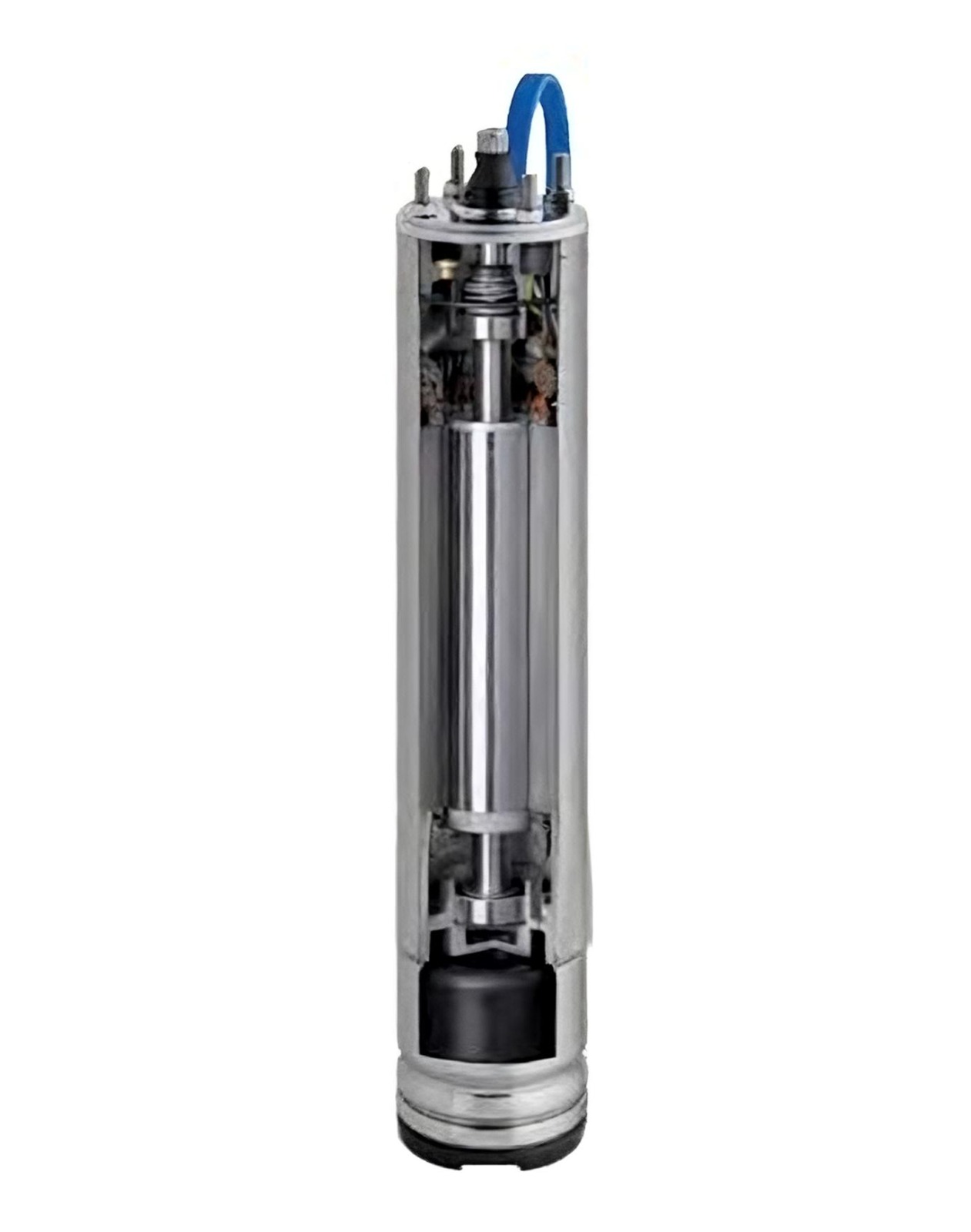

Premium 4″ Oil-Filled Submersible Motor
Ensures critical water supply with Coverco motors, a recognized brand with over 50 years of experience in manufacturing premium oil-filled submersible motors.
Designed to work in demanding residential applications, it has a thermal protector for overload protection, with oil-filled coils, which allows for good heat transfer and acts as an electrical insulator.
FEATURES
– Lubrication in food-grade, non-toxic oil, approved by the U.S. FDA.
– 2-pole asynchronous motor (3600 RPM).
– Removable connector.
– IP68 protection.
– Nema 4″ flange.
– Carbon/ceramic mechanical seal.
– Continuous service.
– Maximum water temperature 30°C.
– Maximum submergence 250 m.
– Minimum cooling speed 8cm/sec.
– Maximum allowed voltage variation +/- 10%.
APPLICATIONS
– Residential use.
– Pumping for agriculture and livestock.
| HP |
0.5, 0.75, 1, 1.5, 2, 3, 5.5, 7.5 |
|---|---|
| Phases |
Single-phase ,Three-phase |
| Voltage |
115 ,230 ,460 |
| RPM |
3600 |
| Brand |
COVERCO |
| Type |
Submersible Clean Water |
| NEMA |
4 |
